Remington Valve provides Metal Seated Ball Valves to the Refining, Mining, Chemical, Petrochemical and Power Generation industries.

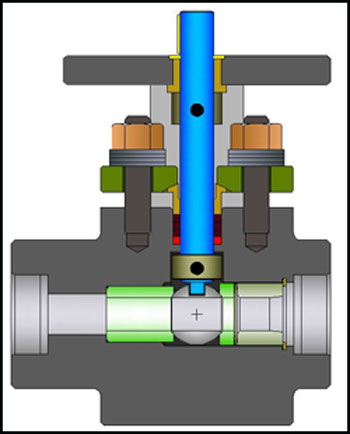

Power Generation Valve Sizes and Configurations
- 1/2 through 2 1/2" (See Severe Service Valves for larger than 2 1/2")
- 1500# through 4500# ANSI
- Full Port and Regular Port
- Butt and Socket Weld
- Special Designs
Typical applications include
- Boiler Systems
- High Pressure Feedwater
- Low Pressure Feedwater
- Inerting Steam Systems
- Sootblowers
- Attemporator Spray Water Block Valves (High Cycle)

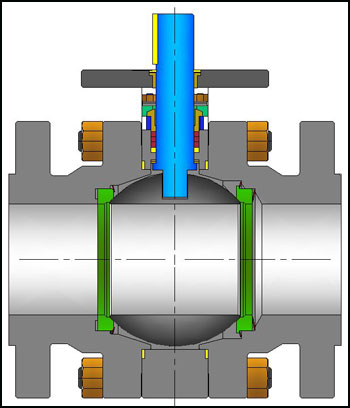

Severe Service Valve Sizes and Configurations
- 1/2 through 24"
- 150# through 4500# ANSI
- Full Port, Regular Port, Custom Ports (Specific Cv, Larger Pressure Drop)
- Raised Face Flange, Butt Weld, Socket Weld, Ring Type Joint and Hub End Connects
- Special Designs
- All valves built to ASME B16.34 specifications
Typical applications include
- Catalyst Addition Withdraw
- Hot Oil Catalyst
- Pump Isolation
- Mining Slurries
- Gas Isolation
- Hot Air
- Bottoms Isolation
- Feed Water
- On / Off Service
- Solids Isolation
- Coker Drum Isolation
- All Severe / Critical Installations
|
To see photos of in process and finished Remington Valve Products,
please click here |
